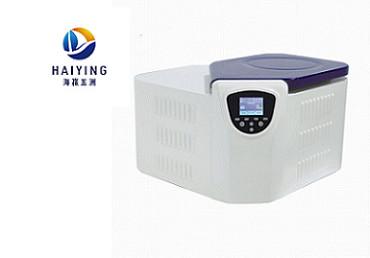

12000r/Min High Speed Refrigerated Centrifuge All Steel Body
Features of High Speed Refrigerated Centrifuge
1. High speed refrigerated centrifuge outstanding performance:
— CPU precise controlling, high performance brushless DC motor,
maintenance free.
— Highly accurate speed control.
2. High speed refrigerated centrifuge reliable safety:
— Full 304 stainless steel made rotor chamber guarantees much more
safety for the rotor running.
— Closed centrifuge chamber can much reduce biological
contamination risk.
3. High speed refrigerated centrifuge humanized design:
— Time and speed display simultaneously, convenient for monitoring
the running condition of the centrifuge.
— Three kinds of operating mode: 10s-99min 59s timing, continuous
run and short run.
— G-force (RCF) and speed (RPM) switch displayed, convenient for
reading.
Max RCF | 12290×g |
Max Capacity | 12000r/min |
Max Speed | 12000r/min |
Timer Range | 1min-99h59min,with continuous run function |
Control and drive system | Large torque AC variable frequency motor, microcomputer control |
Temp control range | -20℃~40℃ |
Noise level | ≤60dB(A) |
Power supply | AC220V 50Hz |
1. Pay attention to the preparation work before using High speed
refrigerated centrifuge
Before using the high-speed centrifuge, you must first check
whether the knobs on the panel are in the specified position, that
is, the power is in the off position, and the potentiometer and
timer are in the zero position. High-speed centrifuge manufacturers
remind you to place an equal amount of samples in each test tube,
and then put them in the rotor symmetrically, so as to avoid
asymmetrical placement due to uneven weight and cause the whole
machine to vibrate during operation.
2. Pay attention to the operation according to the specification
During the operation, first put the test tube into the high-speed
centrifuge and pay attention to tighten the screw and cover the
plexiglass cover, then plug in the plug and turn on the power and
then turn on the power switch. Hot-selling high-speed centrifuge
manufacturers remind you that you should use the timing knob to
select the required time and speed according to your needs. At the
same time, you must turn the speed control knob to zero after
completing this step, and then take out the test tube for analysis
after stopping.
