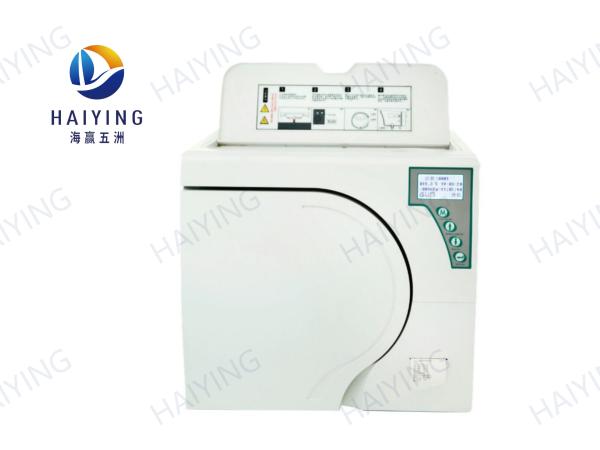

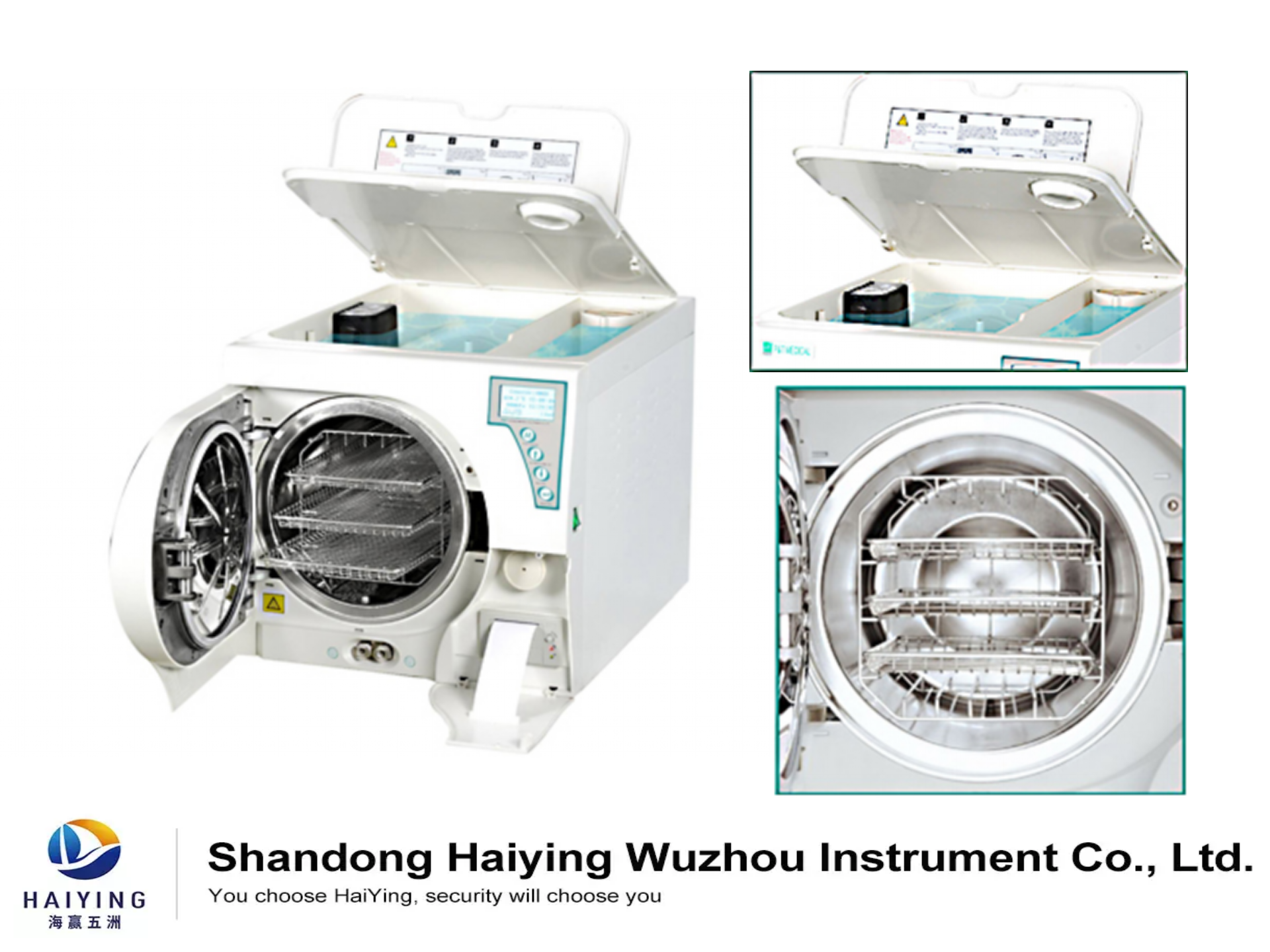

Portable Electric Heating Pressure Performance Desktop Autoclave
Sterilizer
Desktop Autoclave Sterilizer Advantage:
◆ LCD display working status, touch keys.
◆ The vacuum data can reach -0.8bar, it fits various instrument,
including package unpackaged solid, hollow, multi-apetures and
inset pipes. It makes sure the instrument can be sterilized
completely.
◆ It has vacuum test which can make sure the ability of vacuum
testing.
◆ Large screen LCD display, optional printer
◆ High-definition digital display
◆ Five pulse vacuum, microcomputer control, touch button, power-on
self-check and fault self-repair function
◆ High-end imported configuration, the number of vacuums can reach
5 times, the ultimate vacuum is -0.098Mpa, which can meet the rapid
sterilization of all kinds of equipment, super long pipe fittings
and wrapped dressing
◆ Powerful vacuum drying system, the residual humidity of the
equipment after drying does not exceed 0.2%
◆ Two fixed programs, one custom degree, three sterilization
temperatures of 121℃ and 134℃, and the sterilization time can be
set by yourself
◆ With B/D test program, the vacuum leakage rate is less than
0.13kpa/min
◆ It can inactivate HIV, hepatitis B virus, spores, and perfringens
◆ Threaded screw door lock, safe and reliable, domestic first,
external water filter, convenient for daily maintenance
◆ Multiple safety protections, start when the door is closed,
automatically determine if the temperature exceeds the limit, and
start the safety valve when the pressure exceeds the limit
◆ having fast maintenance window, electrical parts maintenance
without dismantling cover.
◆ having quick exhaust and slow exhaust function, avoid
sterilization liquid overflow.
| Model | BTD23-B |
| Chamber dimension | 250mm * 450mm |
| Chamber volume | 23L |
| Overall dimension (L ×W ×H) | 640mm*475mm*430mm |
| Net weight | 58KG |
Desktop Autoclave Sterilizer Operating specifications---Preparation
before use:
◆ Water tank, add pure water or as required in accordance with the
requirements after connecting water, connection equipment power
supply.
◆ Sterilizer, turn on the power supply, the power switch in the on
state, to be prepared for the program is running;
◆ According to the specified requirements or load type, select the
BD program or preheat (for example, if is the class B load with a
cavity, generally need to first run BD application, if all are
exposed solid equipment can run the preheating process) onto a BD
indicate the operator's name or code, date, such as tag, run out
into the south in BD experimental procedures, monitoring equipment
without leakage, the equipment is normal:
◆ stay sterilization package, strapping not too tight, the built-in
chemical indicator CARDS, chemical indicator tape is stuck outside.
Note:
Sterilized items shall not and not mixed with sterilization items.
Sterilization qualified goods, should indicate the date of
sterilization, qualified marks.
